产品介绍：
HSH-E系列环链手扳葫芦主要机件选用优质钢材制造，在设计与使用性能上具有以下特点：
1.安全可靠、经久耐用。2.性能好、维修简便。3.体积小、重量轻、携带方便。4.手扳力小、效率高。5.结构先进、外形美观。
用途：
环 链手扳葫芦主要额定起重量为250公斤、500公斤、750公斤、1500公斤、3000公斤、6000公斤9000公斤。适用于工厂、矿山、建筑工地码 头、运输等各种场合，是设备安装、贷物起吊、物体固定、绑扎和牵引的理想工具，尤其是任意角度的牵引和在场地狭小，露天作业和无电源的情况下，更显示其优 越性。
Features:Themain parts of the HSH-E series endless chain lever block are of good quality steel.It has the following features in design and usage performance.1.Reliable and durable.2.Good performance and easy to maintain.3.Small,light and easy to carry.4.Need small hand force and efficient.5.Advanced in structure and have beautiful appearance.
Use:The rated lifting capacity of the endless chain lever block is 250kg,500kg,750kg,1500kg,3000kg,6000kg,and 9000kg, It is widely used in factoriescmines,construction areas,docks,and transport conditions.It is the ideal tool for equipment isstallation,object lifting,object fixing,banding and towing,especially suitable for towing of random angle, and working in scanty place,open air and place with no power supply.

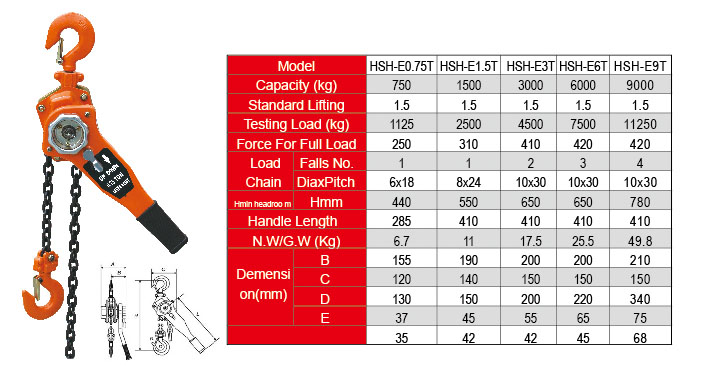

| 型号 | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | |
| 额定载荷 | 吨ton | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
| 起重高度 | 米m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| 实验载荷 | 吨ton | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 7.5 |
11.25 |
| 两钩间min距离位 | 毫米mm | 320 | 320 | 360 | 365 | 470 | 565 | 360 |
| 满载时的手扳力 | 公斤力kgt | 21 | 23 | 24 | 30 | 32 | 34 | 34 |
| 起重链行数 | 1 | 11 | 1 | 1 | 1 | 2 | 2 | |
| 起重链条圆钢直径 | 毫米mm | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
| 手柄长度 | 毫米mm | 280 | 280 | 410 | 410 | 410 | 410 | 410 |
| 装箱尺寸 | 毫米mm | 36*14*13 | 36*14*13 | 51*18.5*15.5 | 51*18.5*15.5 | 51*19.5*19 | 51*19.5*19 | 63*27*23 |
| 净重 | 公斤kg | 67/5.7 | 8 | 11/10 | 11.5 | 17.5/16.5 | 25.5/24.5 | 27 |
| 装箱毛重 | 公斤kg | 11.5 | 11.5 | 15.5 | 15.5 | 29 | 32 | 32 |
| Model | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | HSH-E | |
| loading weight | ton | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
| Left | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Test load | ton | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 7.5 |
11.25 |
| HMin,distance between hooks;H | mm | 320 | 320 | 360 | 365 | 470 | 565 | 360 |
| Pull on Lever to left full load | kgt | 21 | 23 | 24 | 30 | 32 | 34 | 34 |
| No.of.load chain falls | 1 | 11 | 1 | 1 | 1 | 2 | 2 | |
| Diametrr of load chain | mm | 6 | 6 | 8 | 8 | 10 | 10 | 10 |
| Lenght of lever handle;D | mm | 280 | 280 | 410 | 410 | 410 | 410 | 410 |
| Packing measurement(L*W*H) | mm | 36*14*13 | 36*14*13 | 51*18.5*15.5 | 51*18.5*15.5 | 51*19.5*19 | 51*19.5*19 | 63*27*23 |
| Net weight | kg | 67/5.7 | 8 | 11/10 | 11.5 | 17.5/16.5 | 25.5/24.5 | 27 |
| Gross weight | kg | 11.5 | 11.5 | 15.5 | 15.5 | 29 | 32 | 32 |
